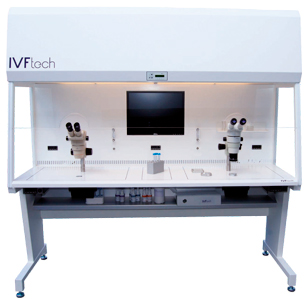

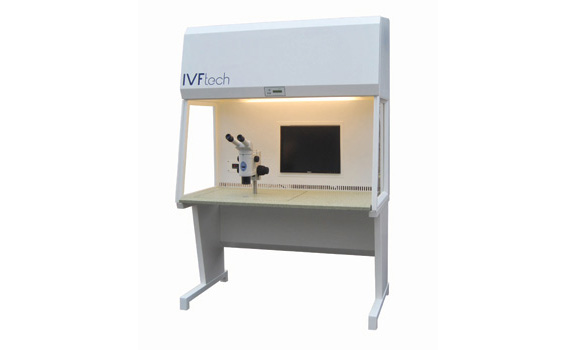

They are designed to protect the samples with a constant flow of clean air, and is made to meet the specific requirements of IVF Laboratories. It is build the provide a vertical laminar flow. The vertical laminar flow provides clean air over the whole of the working area and is manufactured to meet the requirements for IVF laboratory work, such as “vitrification”, “ICSI” manipulation, “sperm collection” and IVF routine work.
With control board with timer to switch on/off the fan and on/off the heated tabletop. All brands of microscope can be installed, choice between oculars through the front window or a secondary window inside the cabinet, which allows the front window to be closed.
The low speed of the fan gives longer life of HEPA filters and blowers and saves energy and less turbulence around the microscope.
Laminator/diffuser uniforms airflow allows more balanced air through lower speed.
The IVFtech Sterile cabinets can be customized to all the above functions and provides an flexible back bone of any IVF laboratory as the cabinets comes in four sizes, with or without height adjustable legs(Optional extra).
Options for Sterile cabinet back wall:
Stainless steel or Himacs®tabel top
Flow meter
Electrical plugs
Monitor outside/inside
Preparations for incubator
Humidification system
Aspiration tunnel
IVFtech heated glass Ø45mm
UV light
Options table top
Standard heat 450 x 650mm
Full heated 450 x 830mm
Extra heat 450 x 200mm
Extra heat 450 x 400
Witness preparation flush

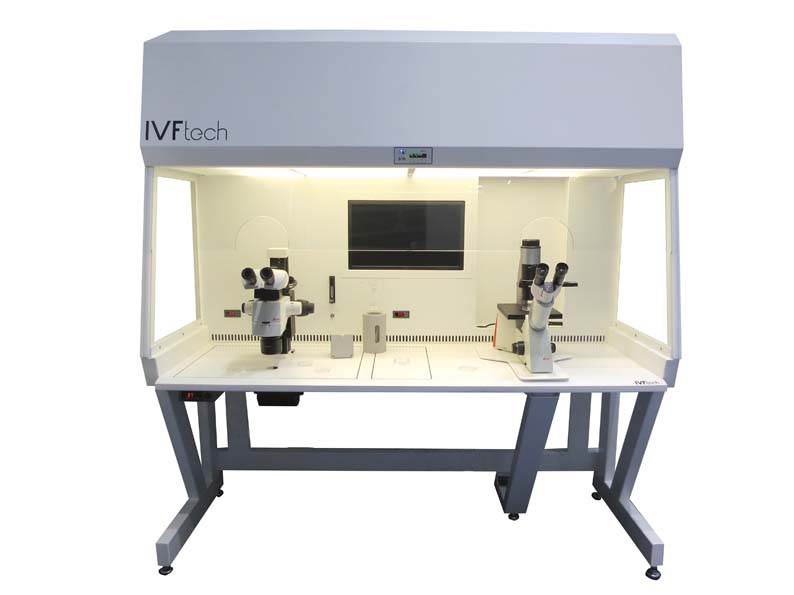

Anti-vib
IVFtech heated glass Ø45mm
Table top integrated incubator
